Jointedware
Code Capacity ml Socket Size Overall Ht mm Dia mm
FR00051 5 14/23 65 27
FR00101 10 14/23 65 33
FR00251 25 14/23 85 41
FR00252 25 19/26 85 41
FR00253 25 24/29 85 41
FR00501 50 14/23 105 51
FR00502 50 19/26 105 51
FR00503 50 24/29 105 51
FR01001 100 14/23 115 64
FR01002 100 19/26 115 64
FR01003 100 24/29 115 64
FR01004 100 29/32 115 64
FR02502 250 19/26 145 85
FR02503 250 24/29 145 85
FR02504 250 29/32 145 85
FR05002 500 19/26 175 105
FR05003 500 24/29 175 105
FR05004 500 29/32 175 105
FR10003 1000 24/29 210 131
FR10004 1000 29/32 210 131
Above Flasks can also be provided in other jointed sizes
Flask can also be provided in 2-necks or 3-necks
Flat Bottom Flask
Single Neck, Medium Neck
Code Capacity ml Socket Size Overall Ht mm Dia mm
FF00501 50 14/23 90 51
FF00502 50 19/26 90 51
FF00503 50 24/29 90 51
FF01002 100 19/26 110 64
FF01003 100 24/29 110 64
FF01004 100 29/32 110 64
FF02502 250 19/26 140 85
FF02503 250 24/29 140 85
FF02504 250 29/32 140 85
FF05002 500 19/26 170 105
FF05003 500 24/29 170 105
FF05004 500 29/32 170 105
FF10003 1000 24/29 200 131
FF10004 1000 29/32 200 131
Above Flasks can also be provided in other jointed sizes
Flask can also be provided in 2-necks or 3-necks
Conical (Erlenmeyer) Flask

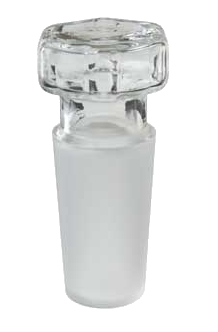

Stopper
Glass Hollow with flat bottom, Hexagonal Shape
Code Capacity ml Socket Size Overall Dia mm Overall Ht mm
FE00251 25 14/23 75 42
FE00252 25 19/26 75 42
FE00501 50 14/23 85 51
FE00502 50 19/26 85 64
FE00503 50 24/29 85 64
FE01002 100 19/26 105 64
FE01003 100 24/29 105 64
FE01004 100 29/32 105 64
FE02503 250 24/29 140 85
FE02504 250 29/32 140 85
FE05003 500 24/29 175 105
FE05004 500 29/32 175 105
FE10003 1000 24/29 220 131
Above Flasks can also be provided in other jointed sizes
Code N/S
SPG10 10/19
SPG12 12/21
SPG14 14/23
SPG19 19/26
SPG24 24/29
SPG29 29/32
SPG34 34/35
Stopper
Polythelene
Code N/S
SPP10 10/19
SPP14 14/23
SPP19 19/26
SPP24 24/29
SPP29 29/32
Reduction Adaptor
Code Socket Size Cone Size
RA12 14/23 19/26
RA13 14/23 24/29
RA14 14/23 29/32
RA23 19/26 24/29
RA24 19/26 29/32
RA25 19/26 34/35
RA34 24/29 29/32
RA45 29/32 34/35
Above Adaptors can also be provided in other jointed sizes
Expansion Adaptor
Code Socket Size Cone Size
RA12 14/23 19/26
RA13 14/23 24/29
RA14 14/23 29/32
RA23 19/26 24/29
RA24 19/26 29/32
RA25 19/26 34/35
RA34 24/29 29/32
RA45 29/32 34/35
Above Adaptors can also be provided in other jointed sizes
Receiver Delivery Adaptor
Still Head
Code Socket Size Length mm Stem
RD14S 14/23 65 Short
RD19S 19/26 65 Short
RD24S 24/29 65 Short
RD14L 14/23 190 Long
RD19L 19/26 200 Long
RD24L 24/29 200 Long
Code Socket Size thermometer Cone Size to flask Cone Size to Condenser
STH422 14/23 19/26 19/26
STH423 14/23 19/26 24/29
STH433 14/23 24/29 24/29
Cone/Screwthread Adaptor
to fit thermometer
Liebig Condenser
Suitable for distillation and reflux application

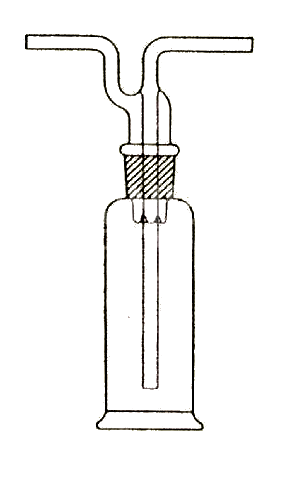

Dreschel Gas Washing Bottle

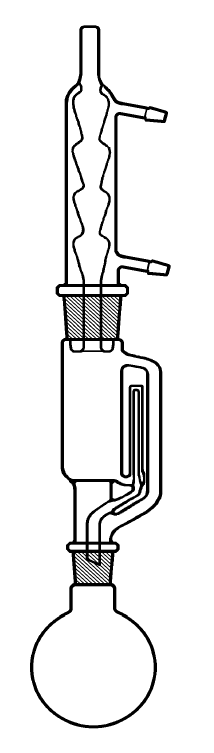

Soxhlet Extractor, complete assemblies
Extraction Paper Thimble
Code For use with Size IDxH Pack Size
CT33100 JEX5/63 33x100 mm 25
CT43123 JEX5/83 43x123 mm 25
Code Sub Code Description
J100RASX JCX7/06 Allihn Condenser, Cone 40/38
  JEX5/63 Soxhlet extractor,  Socket 40/38, Cone 24/29
  JFR250/3 Round Bottom Flask 250 ml, Socket 24/29
J200RASX JCX7/08 Allihn Condenser, Cone 50/42
  JEX5/83 Soxhlet extractor,  Socket 50/42, Cone 24/29
  JFR500/3 Round Bottom Flask 500 ml, Socket 24/29
Code Capacity ml Socket Size Overall Height mm
DGB125 125 24/29 290
DGB250 250 24/29 305
DGB500 500 24/29 380

DGB250A Spare Bottle Head Adjustable for 125 ml/250 ml
Code Socket Size Cone Size Eff Length mm
CC312R 14/23 14/23 160
CC313R 24/29 24/29 160
CC322R 14/23 14/23 250
CC323R 24/29 24/29 250
Code Socket Size Cone Size Eff Length mm
LC111 14/23 14/23 160
LC112160 19/26 19/26 160
LC113 24/29 24/29 250
LC123 24/29 24/29 400
Round Bottom Flask
Single Neck, Medium Neck
Code to fit dia thermometer Cone
JST51/13 6 - 7 mm 14/23
JST52/13 6 - 7 mm 19/26
JST53/13 6 - 7 mm 24/29
JST51/18 7 - 8.5 mm 14/23
JST52/18 7 - 8.5 mm 19/26
JST53/18 7 - 8.5 mm 24/29
JST52/24 10.5-11.5mm 19/26
JST53/24 10.5-11.5mm 24/29

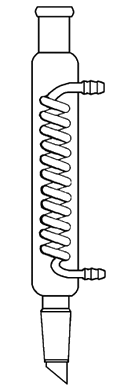

Coil Condenser, Reflux Type
suitable for Reflux application, water through coil
